VALVING MACHINE

Part Number:

  • 14-52-0079
  • 14-52-0080
  • 14-52-0081
  • 14-52-0082

Model:

  • FVM-18-RHPV
  • FVM-18-LHPV
  • FVM-18-LHBP
  • FVM-18-RHBP
FEATURES and OPTIONS
  • Portable or base plate
  • Right and left hand models
  • Heavy duty locking casters
  • Flexible in test area
  • Base plate models
  • Steel base plate (L= 48" W= 38" THK= 3/8")

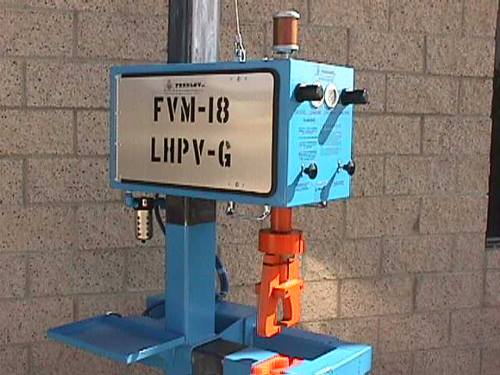

  • Single lever control
  • Single lever controlled drive motor
  • Instantaneous directional response
  • Release lever - stops machine immediately

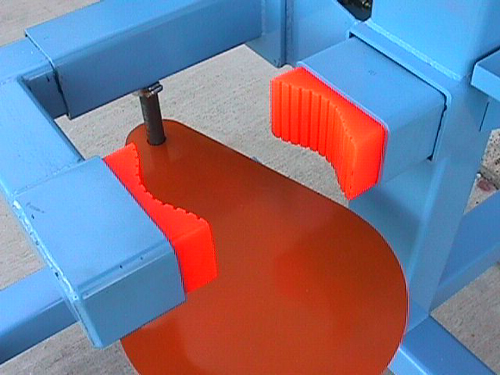

  • Cylinder clamp
    • Tough urethane rubber
    • Fluorescent orange for safety
  • Filtered, Lubricated and Regulated Air
  • Pneumatic operated, Explosion proof

SPECIFICATIONS

  • Dimensions: L= 48" W= 38" H= 104"
  • Weight: 875 lbs. (Approx.)
  • Crate Size: L=110" W=55" H=45"
  • Shipping Weight: 1250 lbs.
  • Maximum cylinder size: 3" to 18" diameter x 62" high
  • Maximum clamping force: 3200 lbs.
    (Fully adjustable)
  • Maximum stall torque: 1000 ft./lbs. (Fully adjustable)
  • Air requirements: 125 PSIG at 95 SCFM
    at max. power
(Click on pictures for full screen view)
OPTIONS

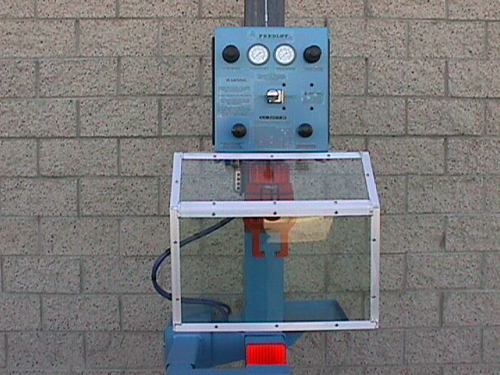

  • .5" thick polycarbonated protective shield
  • Mobile unit
  • Stationary unit
  • Can be manufactured to operate in horizontal position
A product of Fredlov, Inc.
