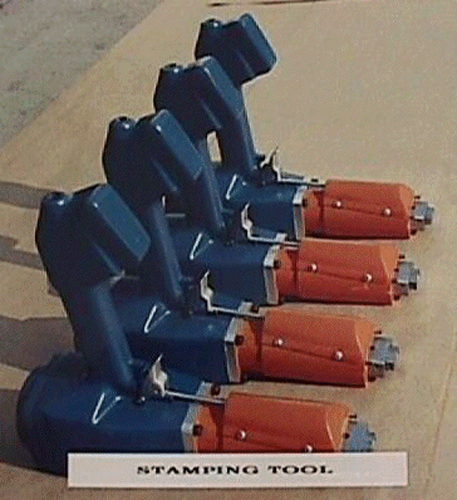

PNEUMATIC STAMPING TOOL

FREDLØV pneumatic high speed stamping tool for stamping DOT certification numbers, month and year dates, with one squeeze of the trigger.

FEATURES

• Stamping Tool is equipped with one set of characters contoured for stamping high pressure steel cylinders with outside diameters of 7" through 11"
• Includes characters 01 through 12, 1 ea. DOT and 1 ea. year character.
• Warranty on stamping tool is one year.
• Warranty on characters is 90 days.
• Time saving tool allows stamping 3 characters pneumatically all at once

• Weight: 11 lbs.
• Air Requirements: Min. 120 PSIG
• Filtered and lubricated air must be used to facilitate full warranty protection.
• Safety: Operator should always wear face shield and ear protection.
• Safety Trigger Operation
• 3/8 NPTF Air Inlet
• Urethane Fluorescent Trigger Rod Guard

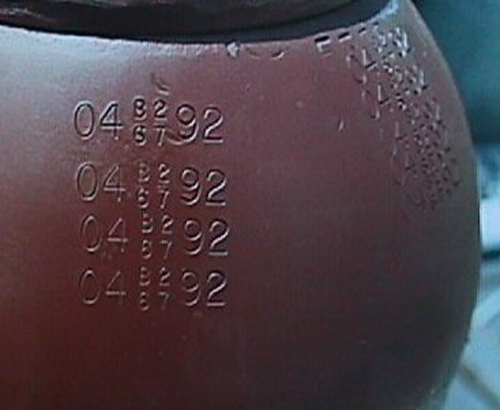

Close up of date stamp on cylinder

(click on pictures for full screen view)

• 14 1/2" x 15"
• 4 1/2" x 4 1/2" actuating chamber
