P/N: 14-53-0086
Model: FCSM-25P
COLLAR SIZING MACHINE
FEATURES:
Provides a fast efficient method for adapting the height and inside diameter of the cylinder collar to fit the cylinder neck.
Uses a 25 ton hydraulic ram to stretch or crush cylinder collars from 1.79" tall to 2.10" tall without damaging the collar thread
Seperate clamping control for holding collar when reaming the ID of the collar
A powerful 250ft pound air motor is used to ream out the ID of the Collar.
Pneumatic operated, Explosion proof

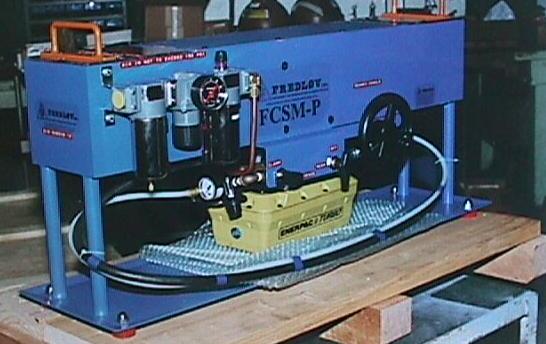

(click picture for full screen view)
SPECIFICATIONS
Maximum collar opening adjustment: 2.20" Diameter
Collar height adjustment range: 1.79" to 2.10"
L=40.5", W=13.5", H=20.5"
Wieght 320lbs, Crated 400lbs
Air Requirements: Max. 125 PSIG clean, filtered and lubricated air required for full warranty.
Safety: Eye and ear protection and gloves must be worn by operator.
Warranty: One year
A product of Fredlov, Inc.
